Руководство пользователя BitBake

bb.event.ConfigParsed() · Клонирование

     busybox_1.21.1.bb
     busybox_1.21.2.bb
     busybox_1.21.3.bb
     $ git clone git://git.openembedded.org/bitbake bbdev
     $ wget http://git.openembedded.org/bitbake/snapshot/bitbake-1.17.0.tar.gz
     $ tar zxpvf bitbake-1.17.0.tar.gz
     $ bitbake -h
     Usage: bitbake [options] [recipename/target recipe:do_task ...]

         Executes the specified task (default is 'build') for a given set of target recipes (.bb files).
         It is assumed there is a conf/bblayers.conf available in cwd or in BBPATH which
         will provide the layer, BBFILES and other configuration information.

     Options:
       --version             show program's version number and exit
       -h, --help            show this help message and exit
       -b BUILDFILE, --buildfile=BUILDFILE
                             Execute tasks from a specific .bb recipe directly.
                             WARNING: Does not handle any dependencies from other
                             recipes.
       -k, --continue        Continue as much as possible after an error. While the
                             target that failed and anything depending on it cannot
                             be built, as much as possible will be built before
                             stopping.
       -f, --force           Force the specified targets/task to run (invalidating
                             any existing stamp file).
       -c CMD, --cmd=CMD     Specify the task to execute. The exact options
                             available depend on the metadata. Some examples might
                             be 'compile' or 'populate_sysroot' or 'listtasks' may
                             give a list of the tasks available.
       -C INVALIDATE_STAMP, --clear-stamp=INVALIDATE_STAMP
                             Invalidate the stamp for the specified task such as
                             'compile' and then run the default task for the
                             specified target(s).
       -r PREFILE, --read=PREFILE
                             Read the specified file before bitbake.conf.
       -R POSTFILE, --postread=POSTFILE
                             Read the specified file after bitbake.conf.
       -v, --verbose         Enable tracing of shell tasks (with 'set -x'). Also
                             print bb.note(...) messages to stdout (in addition to
                             writing them to ${T}/log.do_<task>).
       -D, --debug           Increase the debug level. You can specify this more
                             than once. -D sets the debug level to 1, where only
                             bb.debug(1, ...) messages are printed to stdout; -DD
                             sets the debug level to 2, where both bb.debug(1, ...)
                             and bb.debug(2, ...) messages are printed; etc.
                             Without -D, no debug messages are printed. Note that
                             -D only affects output to stdout. All debug messages
                             are written to ${T}/log.do_taskname, regardless of the
                             debug level.
       -q, --quiet           Output less log message data to the terminal. You can
                             specify this more than once.
       -n, --dry-run         Don't execute, just go through the motions.
       -S SIGNATURE_HANDLER, --dump-signatures=SIGNATURE_HANDLER
                             Dump out the signature construction information, with
                             no task execution. The SIGNATURE_HANDLER parameter is
                             passed to the handler. Two common values are none and
                             printdiff but the handler may define more/less. none
                             means only dump the signature, printdiff means compare
                             the dumped signature with the cached one.
       -p, --parse-only      Quit after parsing the BB recipes.
       -s, --show-versions   Show current and preferred versions of all recipes.
       -e, --environment     Show the global or per-recipe environment complete
                             with information about where variables were
                             set/changed.
       -g, --graphviz        Save dependency tree information for the specified
                             targets in the dot syntax.
       -I EXTRA_ASSUME_PROVIDED, --ignore-deps=EXTRA_ASSUME_PROVIDED
                             Assume these dependencies don't exist and are already
                             provided (equivalent to ASSUME_PROVIDED). Useful to
                             make dependency graphs more appealing
       -l DEBUG_DOMAINS, --log-domains=DEBUG_DOMAINS
                             Show debug logging for the specified logging domains
       -P, --profile         Profile the command and save reports.
       -u UI, --ui=UI        The user interface to use (knotty, ncurses or taskexp
                             - default knotty).
       --token=XMLRPCTOKEN   Specify the connection token to be used when
                             connecting to a remote server.
       --revisions-changed   Set the exit code depending on whether upstream
                             floating revisions have changed or not.
       --server-only         Run bitbake without a UI, only starting a server
                             (cooker) process.
       -B BIND, --bind=BIND  The name/address for the bitbake xmlrpc server to bind
                             to.
       -T SERVER_TIMEOUT, --idle-timeout=SERVER_TIMEOUT
                             Set timeout to unload bitbake server due to
                             inactivity, set to -1 means no unload, default:
                             Environment variable BB_SERVER_TIMEOUT.
       --no-setscene         Do not run any setscene tasks. sstate will be ignored
                             and everything needed, built.
       --setscene-only       Only run setscene tasks, don't run any real tasks.
       --remote-server=REMOTE_SERVER
                             Connect to the specified server.
       -m, --kill-server     Terminate any running bitbake server.
       --observe-only        Connect to a server as an observing-only client.
       --status-only         Check the status of the remote bitbake server.
       -w WRITEEVENTLOG, --write-log=WRITEEVENTLOG
                             Writes the event log of the build to a bitbake event
                             json file. Use '' (empty string) to assign the name
                             automatically.
       --runall=RUNALL       Run the specified task for any recipe in the taskgraph
                             of the specified target (even if it wouldn't otherwise
                             have run).
       --runonly=RUNONLY     Run only the specified task within the taskgraph of
                             the specified targets (and any task dependencies those
                             tasks may have).
     $ bitbake foo
     $ bitbake -c clean foo
     $ bitbake myfirstrecipe:do_taskA mysecondrecipe:do_taskB
     $ bitbake -g foo
     $ bitbake -g -I virtual/kernel -I eglibc foo

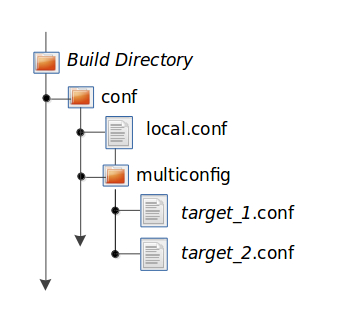

     BBMULTICONFIG = "target1 target2"
$ bitbake [multiconfig:multiconfigname:]target [[[multiconfig:multiconfigname:]target] ... ]
$ bitbake multiconfig:target1:target multiconfig:target2:target
task_or_package[mcdepends] = "multiconfig:from_multiconfig:to_multiconfig:recipe_name:task_on_which_to_depend"
image_task[mcdepends] = "multiconfig:target1:target2:image2:rootfs_task"
$ bitbake multiconfig:target1:image1
image_task[mcdepends] = "multiconfig:target1:target2:image2:image_task"
$ bitbake target
fakeroot create_shar() {
     cat << "EOF" > ${SDK_DEPLOY}/${TOOLCHAIN_OUTPUTNAME}.sh
usage()
{
  echo "test"
  ###### The following "}" at the start of the line causes a parsing error ######
}
EOF
}
     BBFILES = "/path/to/bbfiles/*.bb /path/to/appends/*.bbappend"
PN = "${@bb.parse.BBHandler.vars_from_file(d.getVar('FILE', False),d)[0] or 'defaultpkgname'}"
PV = "${@bb.parse.BBHandler.vars_from_file(d.getVar('FILE', False),d)[1] or '1.0'}"
    BBFILES = "/stuff/openembedded/*/*.bb /stuff/openembedded.modified/*/*.bb"
    BBFILE_COLLECTIONS = "upstream local"
    BBFILE_PATTERN_upstream = "^/stuff/openembedded/"
    BBFILE_PATTERN_local = "^/stuff/openembedded.modified/"
    BBFILE_PRIORITY_upstream = "5"
    BBFILE_PRIORITY_local = "10"
     PREFERRED_PROVIDER_virtual/kernel = "linux-yocto"
     BB_HASHBASE_WHITELIST ?= "TMPDIR FILE PATH PWD BB_TASKHASH BBPATH DL_DIR \
         SSTATE_DIR THISDIR FILESEXTRAPATHS FILE_DIRNAME HOME LOGNAME SHELL TERM \
         USER FILESPATH STAGING_DIR_HOST STAGING_DIR_TARGET COREBASE PRSERV_HOST \
         PRSERV_DUMPDIR PRSERV_DUMPFILE PRSERV_LOCKDOWN PARALLEL_MAKE \
         CCACHE_DIR EXTERNAL_TOOLCHAIN CCACHE CCACHE_DISABLE LICENSE_PATH SDKPKGSUFFIX"
     BB_SIGNATURE_HANDLER ?= "OEBasicHash"
     VARIABLE = " value"
     VARIABLE = "value "
     VARIABLE = ""
     VARIABLE = " "
     VARIABLE = 'I have a " in my value'
     FOO = "bar \
            baz \
            qaz"
     FOO = "barbaz"
     FOO = "bar\
     baz"
     A = "aval"
     B = "pre${A}post"
     A = "${B} baz"
     B = "${C} bar"
     C = "foo"
     C = "qux"
     B = "norf"
     A ??= "somevalue"
     A ??= "someothervalue"
     T = "123"
     A := "${B} ${A} test ${T}"
     T = "456"
     B = "${T} bval"
     C = "cval"
     C := "${C}append"
     B = "bval"
     B += "additionaldata"
     C = "cval"
     C =+ "test"
     B = "bval"
     B .= "additionaldata"
     C = "cval"
     C =. "test"
     B = "bval"
     B_append = " additional data"
     C = "cval"
     C_prepend = "additional data "
     D = "dval"
     D_append = "additional data"
     FOO = "123 456 789 123456 123 456 123 456"
     FOO_remove = "123"
     FOO_remove = "456"
     FOO2 = "abc def ghi abcdef abc def abc def"
     FOO2_remove = "abc def"
     inherit foo
     FOO = "initial"
     FOO += "val"
     FOO_append = " val"
     FOO_append = "bar"
     FOO_append = "baz"
     FOO[a] = "abc"
     FOO[b] = "123"
     FOO[a] += "456"
     DATE = "${@time.strftime('%Y%m%d',time.gmtime())}"
     PN = "${@bb.parse.BBHandler.vars_from_file(d.getVar('FILE', False),d)[0] or 'defaultpkgname'}"
     PV = "${@bb.parse.BBHandler.vars_from_file(d.getVar('FILE', False),d)[1] or '1.0'}"
        unset DATE
        unset do_fetch[noexec]
     BBLAYERS ?= " \
       /home/scott-lenovo/LayerA \
       "
     export ENV_VARIABLE
     ENV_VARIABLE = "value from the environment"

     do_foo() {
         bbplain "$ENV_VARIABLE"
     }
     OVERRIDES = "architecture:os:machine"
     TEST = "default"
     TEST_os = "osspecific"
     TEST_nooverride = "othercondvalue"
     KBRANCH = "standard/base"
     KBRANCH_qemuarm  = "standard/arm-versatile-926ejs"
     KBRANCH_qemumips = "standard/mti-malta32"
     KBRANCH_qemuppc  = "standard/qemuppc"
     KBRANCH_qemux86  = "standard/common-pc/base"
     KBRANCH_qemux86-64  = "standard/common-pc-64/base"
     KBRANCH_qemumips64 = "standard/mti-malta64"
     DEPENDS = "glibc ncurses"
     OVERRIDES = "machine:local"
     DEPENDS_append_machine = " libmad"
     KERNEL_FEATURES_append = " ${KERNEL_EXTRA_FEATURES}"
     KERNEL_FEATURES_append_qemux86=" cfg/sound.scc cfg/paravirt_kvm.scc"
     KERNEL_FEATURES_append_qemux86-64=" cfg/sound.scc cfg/paravirt_kvm.scc"
     FOO_task-configure = "val 1"
     FOO_task-compile = "val 2"
     EXTRA_OEMAKE_prepend_task-compile = "${PARALLEL_MAKE} "
     A${B} = "X"
     B = "2"
     A2 = "Y"
     OVERRIDES = "foo"
     A = "Z"
     A_foo_append = "X"
     OVERRIDES = "foo"
     A = "Z"
     A_append_foo = "X"
     OVERRIDES = "foo"
     A = "Y"
     A_foo_append = "Z"
     A_foo_append = "X"
     A = "1"
     A_append = "2"
     A_append = "3"
     A += "4"
     A .= "5"
     VARIABLE = ""
     VARIABLE_someoverride = "myclass"
     python () {
         if condition == value:
             d.setVar('VARIABLE', 'myclass')
         else:
             d.setVar('VARIABLE', '')
     }
     inherit ${@'classname' if condition else ''}
     inherit ${@functionname(params)}
     some_function () {
         echo "Hello World"
     }
     do_foo() {
         bbplain first
         fn
     }

     fn_prepend() {
         bbplain second
     }

     fn() {
         bbplain third
     }

     do_foo_append() {
         bbplain fourth
     }
     recipename do_foo: first
     recipename do_foo: second
     recipename do_foo: third
     recipename do_foo: fourth
     python some_python_function () {
         d.setVar("TEXT", "Hello World")
         print d.getVar("TEXT")
     }
     python do_foo_prepend() {
         bb.plain("first")
     }
     python do_foo() {
         bb.plain("second")
     }

     python do_foo_append() {
         bb.plain("third")
     }
     recipename do_foo: first
     recipename do_foo: second
     recipename do_foo: third
     def get_depends(d):
         if d.getVar('SOMECONDITION'):
             return "dependencywithcond"
         else:
             return "dependency"
     SOMECONDITION = "1"
     DEPENDS = "${@get_depends(d)}"
     python () {
         if d.getVar('SOMEVAR') == 'value':
             d.setVar('ANOTHERVAR', 'value2')
     }
     python () {
         d.setVar('FOO', 'foo 2')
     }

     FOO = "foo 1"
     python () {
         d.appendVar('BAR', ' bar 2')
     }

     BAR = "bar 1"
     FOO = "foo 1"
     BAR = "bar 1"
     FOO = "foo 2"
     BAR += "bar 2"
     FOO = "foo"
     FOO_append = " from outside"

     python () {
         d.setVar("FOO", "foo from anonymous")
     }
     do_foo() {
             if [ somecondition ] ; then
                     bar_do_foo
             else
                     # Do something else
             fi
     }
     python do_printdate () {
         import time
         print time.strftime('%Y%m%d', time.gmtime())
     }
     addtask printdate after do_fetch before do_build
     export BB_ENV_EXTRAWHITE="$BB_ENV_EXTRAWHITE CCACHE_DIR"
     export CCACHE_DIR
     origenv = d.getVar("BB_ORIGENV", False)
     bar = origenv.getVar("BAR", False)
variable = d.getVarFlags("variable") self.d.setVarFlags("FOO", {"func": True})
     addhandler myclass_eventhandler
     python myclass_eventhandler() {
         from bb.event import getName
         print("The name of the Event is %s" % getName(e))
         print("The file we run for is %s" % d.getVar('FILE'))
     }
     myclass_eventhandler[eventmask] = "bb.event.BuildStarted bb.event.BuildCompleted"
     BBVERSIONS = "1.0 2.0 git"
     SRC_URI_git = "git://someurl/somepath.git"

     BBVERSIONS = "1.0.[0-6]:1.0.0+ \ 1.0.[7-9]:1.0.7+"
     SRC_URI_append_1.0.7+ = "file://some_patch_which_the_new_versions_need.patch;patch=1"
     src_uri = (d.getVar('SRC_URI') or "").split()
     fetcher = bb.fetch2.Fetch(src_uri, d)
     fetcher.download()
     rootdir = l.getVar('WORKDIR')
     fetcher.unpack(rootdir)
     http://git.yoctoproject.org/git/poky;protocol=git
     git://git.yoctoproject.org/git/poky;protocol=http
     PREMIRRORS ?= "\
         bzr://.*/.*   http://somemirror.org/sources/ \n \
         cvs://.*/.*   http://somemirror.org/sources/ \n \
         git://.*/.*   http://somemirror.org/sources/ \n \
         hg://.*/.*    http://somemirror.org/sources/ \n \
         osc://.*/.*   http://somemirror.org/sources/ \n \
         p4://.*/.*    http://somemirror.org/sources/ \n \
         svn://.*/.*   http://somemirror.org/sources/ \n"

     MIRRORS =+ "\
         ftp://.*/.*      http://somemirror.org/sources/ \n \
         http://.*/.*     http://somemirror.org/sources/ \n \
         https://.*/.*    http://somemirror.org/sources/ \n"
SRC_URI[md5sum] = "value" SRC_URI[sha256sum] = "value"
     SRC_URI = "http://example.com/foobar.tar.bz2;md5sum=4a8e0f237e961fd7785d19d07fdb994d"
     SRC_URI = "http://example.com/foobar.tar.bz2;name=foo"
     SRC_URI[foo.md5sum] = 4a8e0f237e961fd7785d19d07fdb994d
     SRC_URI = "file://relativefile.patch"
     SRC_URI = "file:///Users/ich/very_important_software"
     SRC_URI = "http://oe.handhelds.org/not_there.aac"
     SRC_URI = "ftp://oe.handhelds.org/not_there_as_well.aac"
     SRC_URI = "ftp://you@oe.handhelds.org/home/you/secret.plan"
     SRC_URI = "http://abc123.org/git/?p=gcc/gcc.git;a=snapshot;h=a5dd47"
     SRC_URI = "http://abc123.org/git/?p=gcc/gcc.git&a=snapshot&h=a5dd47"
     SRC_URI = "http://abc123.org/git/?p=gcc/gcc.git&a=snapshot&h=a5dd47;downloadfilename=myfile.bz2"
     SRC_URI = "cvs://CVSROOT;module=mymodule;tag=some-version;method=ext"
     SRC_URI = "cvs://CVSROOT;module=mymodule;date=20060126;localdir=usethat"
     SRC_URI = "svn://myrepos/proj1;module=vip;protocol=http;rev=667"
     SRC_URI = "svn://myrepos/proj1;module=opie;protocol=svn+ssh"
     SRC_URI = "svn://myrepos/proj1;module=trunk;protocol=http;path_spec=${MY_DIR}/proj1"
     SRC_URI = "git://git.oe.handhelds.org/git/vip.git;tag=version-1"
     SRC_URI = "git://git.oe.handhelds.org/git/vip.git;protocol=http"
     SRC_URI = "ccrc://cc.example.org/ccrc;vob=/example_vob;module=/example_module"
     SRCREV = "EXAMPLE_CLEARCASE_TAG"
     PV = "${@d.getVar("SRCREV", False).replace("/", "+")}"
    SRC_URI = "p4://example-depot/main/source/..."
    SRCREV = "${AUTOREV}"
    PV = "p4-${SRCPV}"
    S = "${WORKDIR}/p4"
    P4PORT = "tcp:p4server.example.net:1666"
    SRC_URI = "p4://user:passwd@example-depot/main/source/..."
    SRCREV = "release-1.0"
    PV = "p4-${SRCPV}"
    S = "${WORKDIR}/p4"
    SRC_URI = "repo://REPOROOT;protocol=git;branch=some_branch;manifest=my_manifest.xml"
    SRC_URI = "repo://REPOROOT;protocol=file;branch=some_branch;manifest=my_manifest.xml"
     BB_DISKMON_DIRS = "ABORT,${TMPDIR},1G,100K WARN,${SSTATE_DIR},1G,100K"
     BB_DISKMON_DIRS = "STOPTASKS,${TMPDIR},1G"
     BB_DISKMON_DIRS = "ABORT,${TMPDIR},,100K"
     BB_DISKMON_DIRS = "WARN,${SSTATE_DIR},1G,100K"
     BB_DISKMON_WARNINTERVAL = "50M,5K"
BB_TASK_IONICE_LEVEL = "class.prio"
$ sudo sh -c “echo cfq > /sys/block/device/queu/scheduler
BBCLASSEXTEND =+ "native nativesdk"
     BBCLASSEXTEND =+ "multilib:multilib_name"
     BBLAYERS = " \
       /home/scottrif/poky/meta \
       /home/scottrif/poky/meta-yocto \
       /home/scottrif/poky/meta-yocto-bsp \
       /home/scottrif/poky/meta-mykernel \
       "
     BBMASK = "meta-ti/recipes-misc/"
     BBMASK += "/meta-ti/recipes-misc/ meta-ti/recipes-ti/packagegroup/"
     BBMASK += "/meta-oe/recipes-support/"
     BBMASK += "/meta-foo/.*/openldap"
     BBMASK += "opencv.*\.bbappend"
     BBMASK += "lzma"
$ BBPATH="build_directory" $ export BBPATH $ bitbake target
     OVERRIDES = "arm:x86:mips:powerpc"
     PREFERRED_PROVIDER_virtual/kernel ?= "linux-yocto"
     PREFERRED_PROVIDER_virtual/xserver = "xserver-xf86"
     PREFERRED_PROVIDER_virtual/libgl ?= "mesa"
     PREFERRED_PROVIDER_xxx = "yyy"
     PREFERRED_PROVIDER_aaa = "bbb"
     PREFERRED_VERSION_python = "2.7.3"
     PREFERRED_VERSION_linux-yocto = "4.12%"
     PREMIRRORS_prepend = "\
     git://.*/.* http://www.yoctoproject.org/sources/ \n \
     ftp://.*/.* http://www.yoctoproject.org/sources/ \n \
     http://.*/.* http://www.yoctoproject.org/sources/ \n \
     https://.*/.* http://www.yoctoproject.org/sources/ \n"
     $ ls -al
     total 100
     drwxrwxr-x. 9 wmat wmat  4096 Jan 31 13:44 .
     drwxrwxr-x. 3 wmat wmat  4096 Feb  4 10:45 ..
     -rw-rw-r--. 1 wmat wmat   365 Nov 26 04:55 AUTHORS
     drwxrwxr-x. 2 wmat wmat  4096 Nov 26 04:55 bin
     drwxrwxr-x. 4 wmat wmat  4096 Jan 31 13:44 build
     -rw-rw-r--. 1 wmat wmat 16501 Nov 26 04:55 ChangeLog
     drwxrwxr-x. 2 wmat wmat  4096 Nov 26 04:55 classes
     drwxrwxr-x. 2 wmat wmat  4096 Nov 26 04:55 conf
     drwxrwxr-x. 3 wmat wmat  4096 Nov 26 04:55 contrib
     -rw-rw-r--. 1 wmat wmat 17987 Nov 26 04:55 COPYING
     drwxrwxr-x. 3 wmat wmat  4096 Nov 26 04:55 doc
     -rw-rw-r--. 1 wmat wmat    69 Nov 26 04:55 .gitignore
     -rw-rw-r--. 1 wmat wmat   849 Nov 26 04:55 HEADER
     drwxrwxr-x. 5 wmat wmat  4096 Jan 31 13:44 lib
     -rw-rw-r--. 1 wmat wmat   195 Nov 26 04:55 MANIFEST.in
     -rw-rw-r--. 1 wmat wmat  2887 Nov 26 04:55 TODO
     $ ./bin/bitbake --version
     BitBake Build Tool Core version 1.23.0, bitbake version 1.23.0
     $ mkdir ~/hello
     $ cd ~/hello
     $ bitbake
     The BBPATH variable is not set and bitbake did not
     find a conf/bblayers.conf file in the expected location.
     Maybe you accidentally invoked bitbake from the wrong directory?
     DEBUG: Removed the following variables from the environment:
     GNOME_DESKTOP_SESSION_ID, XDG_CURRENT_DESKTOP,
     GNOME_KEYRING_CONTROL, DISPLAY, SSH_AGENT_PID, LANG, no_proxy,
     XDG_SESSION_PATH, XAUTHORITY, SESSION_MANAGER, SHLVL,
     MANDATORY_PATH, COMPIZ_CONFIG_PROFILE, WINDOWID, EDITOR,
     GPG_AGENT_INFO, SSH_AUTH_SOCK, GDMSESSION, GNOME_KEYRING_PID,
     XDG_SEAT_PATH, XDG_CONFIG_DIRS, LESSOPEN, DBUS_SESSION_BUS_ADDRESS,
     _, XDG_SESSION_COOKIE, DESKTOP_SESSION, LESSCLOSE, DEFAULTS_PATH,
     UBUNTU_MENUPROXY, OLDPWD, XDG_DATA_DIRS, COLORTERM, LS_COLORS
$ BBPATH="projectdirectory" $ export BBPATH
     $ bitbake
     ERROR: Traceback (most recent call last):
       File "/home/scott-lenovo/bitbake/lib/bb/cookerdata.py", line 163, in wrapped
         return func(fn, *args)
       File "/home/scott-lenovo/bitbake/lib/bb/cookerdata.py", line 173, in parse_config_file
         return bb.parse.handle(fn, data, include)
       File "/home/scott-lenovo/bitbake/lib/bb/parse/__init__.py", line 99, in handle
         return h['handle'](fn, data, include)
       File "/home/scott-lenovo/bitbake/lib/bb/parse/parse_py/ConfHandler.py", line 120, in handle
         abs_fn = resolve_file(fn, data)
       File "/home/scott-lenovo/bitbake/lib/bb/parse/__init__.py", line 117, in resolve_file
         raise IOError("file %s not found in %s" % (fn, bbpath))
     IOError: file conf/bitbake.conf not found in /home/scott-lenovo/hello

     ERROR: Unable to parse conf/bitbake.conf: file conf/bitbake.conf not found in /home/scott-lenovo/hello
     $ mkdir conf
     PN  = "${@bb.parse.BBHandler.vars_from_file(d.getVar('FILE', False),d)[0] or 'defaultpkgname'}"

     TMPDIR  = "${TOPDIR}/tmp"
     CACHE   = "${TMPDIR}/cache"
     STAMP   = "${TMPDIR}/${PN}/stamps"
     T       = "${TMPDIR}/${PN}/work"
     B       = "${TMPDIR}/${PN}"
$ bitbake
ERROR: Traceback (most recent call last):
  File "/home/scott-lenovo/bitbake/lib/bb/cookerdata.py", line 163, in wrapped
    return func(fn, *args)
  File "/home/scott-lenovo/bitbake/lib/bb/cookerdata.py", line 177, in _inherit
    bb.parse.BBHandler.inherit(bbclass, "configuration INHERITs", 0, data)
  File "/home/scott-lenovo/bitbake/lib/bb/parse/parse_py/BBHandler.py", line 92, in inherit
    include(fn, file, lineno, d, "inherit")
  File "/home/scott-lenovo/bitbake/lib/bb/parse/parse_py/ConfHandler.py", line 100, in include
    raise ParseError("Could not %(error_out)s file %(fn)s" % vars(), oldfn, lineno)
    ParseError: ParseError in configuration INHERITs: Could not inherit file classes/base.bbclass

ERROR: Unable to parse base: ParseError in configuration INHERITs: Could not inherit file classes/base.bbclass
     $ cd $HOME/hello
     $ mkdir classes
Nothing to do.  Use 'bitbake world' to build everything, or run 'bitbake --help' for usage information.
     $ cd $HOME
     $ mkdir mylayer
     $ cd mylayer
     $ mkdir conf
     BBPATH .= ":${LAYERDIR}"

     BBFILES += "${LAYERDIR}/*.bb"

     BBFILE_COLLECTIONS += "mylayer"
     BBFILE_PATTERN_mylayer := "^${LAYERDIR_RE}/"
     DESCRIPTION = "Prints Hello World"
     PN = 'printhello'
     PV = '1'

     python do_build() {
        bb.plain("********************");
        bb.plain("*                  *");
        bb.plain("*  Hello, World!   *");
        bb.plain("*                  *");
        bb.plain("********************");
     }
     $ cd $HOME/hello
     $ bitbake printhello
     ERROR: no recipe files to build, check your BBPATH and BBFILES?

     Summary: There was 1 ERROR message shown, returning a non-zero exit code.
     BBLAYERS ?= " \
       /home/<you>/mylayer \
       "
     $ bitbake printhello
     Parsing recipes: 100% |##################################################################################|
     Time: 00:00:00
     Parsing of 1 .bb files complete (0 cached, 1 parsed). 1 targets, 0 skipped, 0 masked, 0 errors.
     NOTE: Resolving any missing task queue dependencies
     NOTE: Preparing RunQueue
     NOTE: Executing RunQueue Tasks
     ********************
     *                  *
     *  Hello, World!   *
     *                  *
     ********************
     NOTE: Tasks Summary: Attempted 1 tasks of which 0 didn't need to be rerun and all succeeded.

Операция	Описание
`d.getVar("X", expand)`	Возвращает значение переменной X, преобразуя значение при expand=True. Если переменной X нет, возвращает None.
`d.setVar("X", "value")`	Устанавливает для переменной X значение value.
`d.appendVar("X", "value")`	Добавляет value в конце переменной X. Ведет себя как d.setVar(“X”, “value”) при отсутствии переменной X.
`d.prependVar("X", "value")`	Добавляет value в начале переменной X. Ведет себя как d.setVar(“X”, “value”) при отсутствии переменной X.
`d.delVar("X")`	Удаляет переменную X из хранилища при ее наличии.
`d.renameVar("X", "Y")`	Переименовывает переменную X в Y, если она существует.
`d.getVarFlag("X", flag, expand)`	Возвращает значение переменной X, преобразуя значение при expand=True. Если переменной X или флага нет, возвращает None.
`d.setVarFlag("X", flag, "value")`	Устанавливает для флага переменной X значение value.
`d.appendVarFlag("X", flag, "value")`	Добавляет value в конец флагов переменной X. Ведет себя как d.setVarFlag(“X”, flag, “value”) при отсутствии флага.
`d.prependVarFlag("X", flag, "value")`	Добавляет value в начало флагов переменной X. Ведет себя как d.setVarFlag(“X”, flag, “value”) при отсутствии флага.
`d.delVarFlag("X", flag)`	Удаляет из хранилища флаг переменной X.
`d.setVarFlags("X", flagsdict)`	Устанавливает флаг, заданный в параметре flagsdict, не сбрасывая имеющийся флаг (как addVarFlags).
`d.getVarFlags("X")`	Возвращает flagsdict флагов переменной X или None, если X нет.
`d.delVarFlags("X")`	Удаляет все флаги переменной X при ее наличии.
`d.expand(expression)`	Преобразует переменную, указанную строкой expression. Ссылки не отсутствующие переменные не меняются. Например, d.expand(“foo ${X}”) преобразует строку foo ${X}, если переменной X не существует.

Руководство пользователя BitBake

BitBake User Manual

Глава 1. Обзор

1.1. Введение

1.2. История и назначение

1.3. Концепции

1.3.1. Задания

1.3.2. Файлы конфигурации

1.3.3. Классы

1.3.4. Уровни

1.3.5. Файлы дополнения

1.4. Получение BitBake

1.5. Команда bitbake

1.5.1. Использование и синтаксис

1.5.2. Примеры

1.5.2.1. Выполнение задач для одного задания

1.5.2.2. Выполнение задач для набора заданий

1.5.2.3. Выполнение списка задач и заданий

1.5.2.4. Построение графа зависимостей

1.5.2.5. Сборка с несколькими конфигурациями

1.5.2.6. Включение зависимостей при сборке с множеством конфигураций

Глава 2. Выполнение

2.1. Анализ базовых метаданных

2.2. Нахождение и анализ заданий

2.3. Провайдеры

2.4. Предпочтения

2.5. Зависимости

2.6. Список задач

2.7. Выполнение задач

2.8. Контрольные суммы (подписи)

2.9. Setscene

Глава 3. Синтаксис и операторы

3.1. Базовый синтаксис

3.1.1. Установка переменных

3.1.2. Изменение имеющихся переменных

3.1.3. Объединение строк

3.1.4. Преобразование переменных

3.1.5. Установка с сохранением принятого по умолчанию значения (?=)

3.1.6. Отложенная установка с сохранением заданной по умолчанию (??=)

3.1.7. Незамедлительное преобразование переменной (:=)

3.1.8. Добавление в конец (+=) и в начало (=+) с пробелом

3.1.9. Добавление в (.=) и в начало (=.) без пробела

3.1.10. Добавление в начало или в конец с переопределением

3.1.11. Удаление

3.1.12. Преимущества стиля переопределения

3.1.13. Синтаксис флагов переменных

3.1.14. Преобразование переменных Python

3.1.15. Отмена переменных

3.1.16. Указание путей

3.2. Экспорт переменных в среду

3.3. Синтаксис условий

3.3.1. Условные метаданные

3.3.2. Преобразование ключей

3.3.3. Примеры

3.4. Общая функциональность

3.4.1. Поиск включаемых файлов и классов

3.4.2. Директива inherit

3.4.3. Директива include

3.4.4. Директива require

3.4.5. Конфигурационная директива INHERIT

3.5. Функции

3.5.1. Функции оболочки

3.5.2. Функции Python в стиле BitBake

3.5.3. Функции Python

3.5.4. Функции в стиле Bitbake и обычные функции Python

3.5.5. Анонимные функции Python

3.5.6. Гибкое наследование для функций класса

3.6. Задачи

3.6.1. Представление функции задаче

3.6.2. Удаление задачи

3.6.3. Передача информации в среду сборки задачи

3.7. Флаги переменных

3.8. События

3.9. Варианты – механизм расширения класса

3.10. Зависимости

3.10.1. Зависимости внутри файла .bb

3.10.2. Зависимости при сборке

3.10.3. Зависимости при работе

3.10.4. Рекурсивные зависимости

3.10.5. Зависимости между задачами

1.5. Команда `bitbake`

3.4.3. Директива `include`

3.4.4. Директива `require`

3.4.5. Конфигурационная директива `INHERIT`

4.3.1. Сборщик локальных файлов (`file://`)

4.3.2. Сборщик HTTP/FTP wget (`http://`, `ftp://`, `https://`)

4.3.3. Сборщик CVS `(cvs://`)

4.3.4. Сборщик SVN (`svn://`)

4.3.5. Сборщик Git (`git://`)

4.3.6. Сборщик субмодулей Git (`gitsm://`)

4.3.7. Сборщик ClearCase (`ccrc://`)

4.3.9. Сборщик Repo (`repo://`)
